Author Topic: Speaking of suspension "clunks"  (Read 2827 times)

0 Members and 1 Guest are viewing this topic.

KWilson

  • Lightly Modded
  • **
  • Posts: 184
Speaking of suspension "clunks"
« on: August 25, 2009, 06:41:37 PM »
Last fall, I did a suspension refresh on my 2003 Jetta (bushings, tie rod ends, strut mounts, etc.).

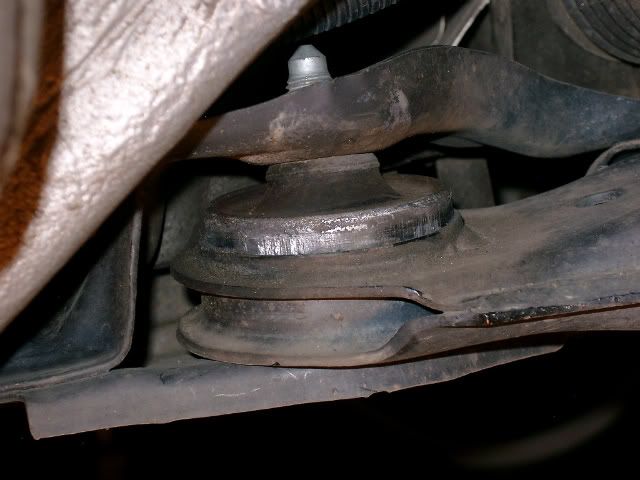

A couple of months ago, I started hearing a clunk when turning right.  It's been driving me nuts, trying to figure out what's causing it.  First, I thought it must be my strut bearing, as that was about the only thing that I did not replace due to it being sort of a PITA.  Well, I replaced them, and the noise was still there.  Then, after consulting a mechanic friend, I was convinced that my passenger ball joint must be bad.  Replaced it this weekend, with no effect on the noise.  Then, I noticed something while jacking the wheel up and down.  It appeard that my rear control arm bushing was moving in the control arm.



The bushing is supposed to be level with the top of the control arm.  It appears that either the hole in my control arm is a little too large, or the bushing is a little too small (probably the latter).  When the passenger side suspension is unweighted, sometimes, the control arm gets torqued down and hits the subframe. :o  I think the clunk is the control arm making contact with the subframe, or the control arm slipping back up to where it is supposed to be.

03Indigo

  • Global Moderator
  • Supercar
  • *****
  • Posts: 5,686
Re: Speaking of suspension "clunks"
« Reply #1 on: August 26, 2009, 11:47:08 AM »
OMG...that is a lot of slippage.  I would guess the entire assembly needs to be replaced due to wear from both parts.  That sucks. :(

Rocky Mountain Club B5

Re: Speaking of suspension "clunks"
« Reply #1 on: August 26, 2009, 11:47:08 AM »

jayryan

  • Supercar
  • *****
  • Posts: 6,211
    • JayFriesen.com
Re: Speaking of suspension "clunks"
« Reply #2 on: August 28, 2009, 03:23:46 PM »
Wow....what Jon said. I'm feeling the need to put my car on blocks and put on all new CA's and stuff.
'03 A4 1.8TQM
'68 MG C
'06 4Runner

KWilson

  • Lightly Modded
  • **
  • Posts: 184
Re: Speaking of suspension "clunks"
« Reply #3 on: August 29, 2009, 01:41:37 AM »
All fixed (hopefully).  Got a new (used) control arm from RS Motorsports for $25, new bushing, and swapped the control arm this afternoon.  No strange noises, but I need an alignment now.

The old bushing was really strange, as it had pushed through, not backed out.  They only go in one way (from the bottom on the passanger side).  I had thought that it had backed out, until I took a closer look at it.  I did learn that a workbench vise with a cheater bar on the handle works pretty good as a substitute for a shop press. :)

Next repair will probably be a new turbo - my little KO3s is starting to whine a bit. :(
